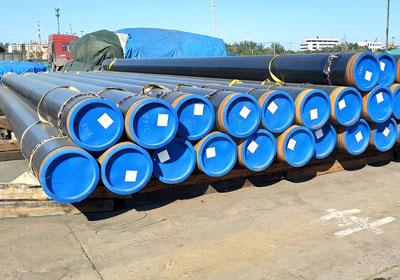

IS3589 FE410 Pipes

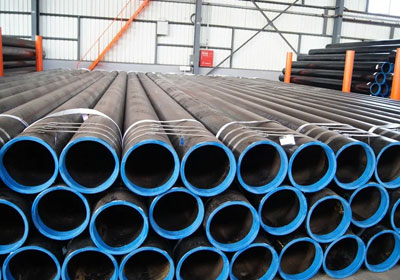

IS3589 FE410 Pipes - Image 2

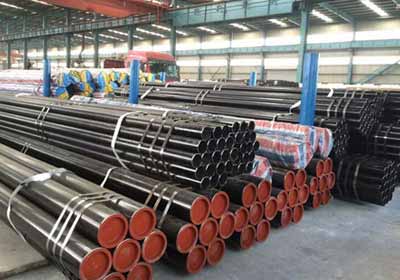

IS3589 FE410 Pipes - Image 3

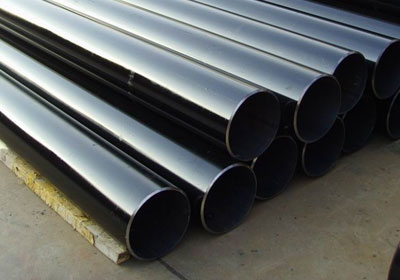

IS3589 FE410 Pipes - Image 4

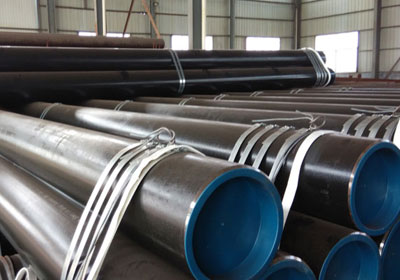

IS3589 FE410 Pipes - Image 5

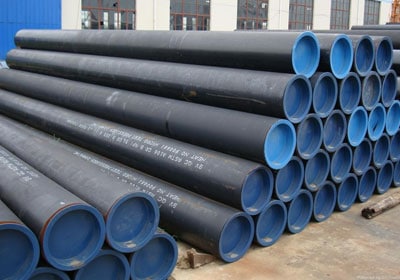

IS3589 FE410 Pipes - Image 6

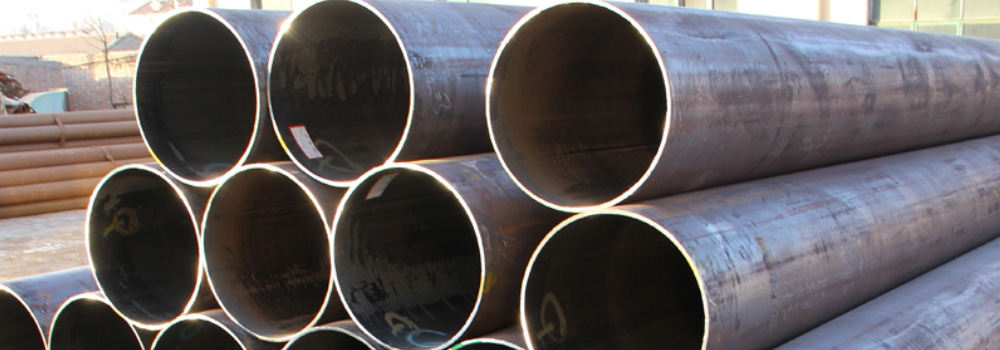

IS3589 FE410 Pipes - Image 7

IS3589 FE410 Pipes

 SPECIFICATIONS

Dimensions : ASTM, ASME and API
Thickness : 3-12mm
End : Plain End, Beveled End, Treaded
Length : Min 3 Meters, Max18 Meters, or according to customer’s requirement
Types : Seamless, Welded, ERW
End : Plain End, Beveled End, Treaded
Schedules : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules

Categories: ,
Contact Us
Request a Quote

PT. Cahaya Bina Baja is a distributor of Carbon Steel IS3589 FE410 Pipes, which are extensively used in Chemicals, [Nuclear] Power, Petrochemicals, Space Engineering, Dairy, and Food-processing. These CS IS3589 FE410 Pipes is known for Resistant to damage, Corrosion resistant, Sturdiness, Leak proof, Dimensional accuracy, Corrosion resistance, High strength, Durability, Thermal resistance, Chemical resistance, Excellent finish, and so on. We offer these CS IS3589 FE410 Pipe at nominal price in a confine time frame. We are successfully engrossed in offering a sophisticated assortment of our Carbon Steel IS3589 Pipes in the national as well as international market. We provide these Carbon Steel FE410 Pipes to the clients in different specifications. With precise dimensional structure, these Carbon Steel IS3589 Tubes are highly applicable for high pressure and temperature applications to controlling the flawless flow of liquefied and gaseous materials through the pipes.

LIST OF IS3589 FE410 PIPE

IS3589 CS FE410 PIPE TYPE

  • Bevelled End (BW)
  • Plain End Pipe (PE)
Sr No DESCRIPTION GRADE SIZE RANGE
A IS3589 FE410 ERW / WELDED PIPES
1 Carbon Steel IS3589 FE410 ERW Pipes IS3589 FE410 1/2″ – 24″
2 Carbon Steel IS3589 FE410 Black & Galvanized Pipes IS3589 FE410 1/2″ – 16″

MS IS 3589 ERW PIPES CONFIRMING TO IS 3589, GRADE FE410

Wall Thickness NominalBore 7″ NB 193.7 mm OD NominalBore 8″ NB 219.1 mm OD NominalBore 10″ NB 273 mm OD NominalBore 12″ NB 323.7 mm OD NominalBore 14″ NB 355.6 mm OD NominalBore 16″ NB 406.4 mm OD NominalBore 18″ NB 457mm OD NominalBore 20″ NB 508 mm OD
mm Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr
4.85 22.59 25.62 32.07 38.13 – – – –
5.20 24.17 27.43 34.34 40.85 – – – –
5.60 26.00 29.28 36.93 43.93 48.11 – –
6.00 27.88 31.53 39.50 47.02 51.49 61.00 69.00 –
6.35 29.34 33.28 41.73 49.67 54.43 62.35 70.50 78.50
7.01 32.77 36.76 46.43 55.45 61.82 69.04 – –
7.94 – 41.00 50.95 61.85 67.98 77.94 87.80 –
8.18 – 42.56 53.42 65.12 – – – –
9.53 – 51.50 60.24 73.75 81.21 93.13 105.00 117.00
12.70 – – – – 107.28 123.30 139.00 155.00

DIFFERENT TYPES OF IS3589 FE410 PIPE

  •  IS3589 CS FE410 Seamless Pipe Stockist
  •  IS3589 FE410 Carbon Steel Welded Pipes Supplier
  •  Carbon Steel IS3589 FE410 Square Pipes
  •  IS3589 Carbon FE410 Rectangle Pipe
  •  IS3589 CS FE410 EFW Pipe Manufacturer
  •  IS3589 Carbon Steel FE410 Pipe in Mumbai
  •  IS3589 FE410 Carbon Steel ERW Pipes in india
  •  IS3589 Carbon Steel FE410 SMLS Pipe
  •  IS3589 FE410 CS Seamless Pipe Weight
  •  Carbon Steel IS3589 FE410 SMLS Pipe at Best Price

APPLICATION AND MATERIAL OF IS3589 FE410 PIPE

  •  IS3589 FE410 Pipe used for Refineries
  •  IS3589 FE410 Pipe used for Power Plants
  •  IS3589 FE410 Pipe used for Marine Applications
  •  IS3589 FE410 Pipe used for Off-Shore Oil Drilling Companies
  •  IS3589 FE410 Pipe used for Fossil Fuel Power Plants
  •  IS3589 FE410 Pipe used for Ship Building
  •  IS3589 FE410 Pipe used for Nuclear Power
  •  IS3589 FE410 Pipe used for Paper & Pulp
  •  IS3589 FE410 Pipe used for Gas Processing
  •  IS3589 FE410 Pipe used for Sea Water Equipment
