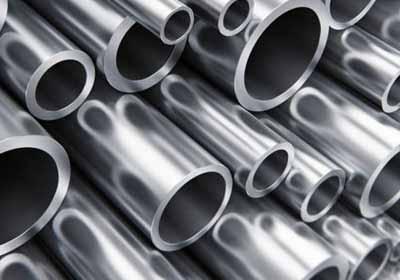

STAINLESS STEEL 316/316L PIPES
STAINLESS STEEL 316/316L PIPES - Image 2
STAINLESS STEEL 316/316L PIPES - Image 3
STAINLESS STEEL 316/316L PIPES - Image 4

STAINLESS STEEL 316/316L PIPES

SPECIFICATIONS

316/316L Welded Pipes are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
SS Pipes : 1/2″ NB – 16″ NB
SS ERW Pipes : 1/2″ NB – 24″ NB
SS EFW Pipes : 6″ NB – 100″ NB
Specialized in : Large Diameter Size
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Cut Length
End : Plain End, Beveled End, Treaded
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes



Categories: ,
Contact Us
Request a Quote

Stainless Steel 316 Pipes uses hydrogen and other corrosive gases as process media. Post work annealing in Stainless Steel 316L Pipes should be carried out to remove internal stresses. Stainless Steel 316 Seamless Pipes is commonly used in chemical and petrochemical industry. SS 316L Welded Pipes has creep and stress-rupture strengths. SS 316 EFW Pipes are resistant to sensitization in short-term exposures or heat treatments. The carbon content in Stainless Steel 316L ERW Pipes reduces susceptibility to carbide precipitation during welding. Cold working operations will increase the strength and hardness of SS 316 Round Pipes and might leave it slightly magnetic. The molybdenum gives Stainless Steel 316L Square Pipes better overall corrosion resistant properties than Stainless Steel 304 Pipes. We can process Stainless Steel 316 Rectangular Pipes to fit your applications using our in house processing capabilities and service on your timeline.



LIST OF STAINLESS STEEL 316/316L PIPES

Stainless Steel 316L Electropolish Pipes is an excellent choice for various applications and industries sectors such as oil and gas. SS 316 Pipes has high creep strength at elevated temperatures. 316L Stainless Steel Pipes has good oxidation resistance in intermittent service up to 1600 ° F and in continuous service to 1700 ° F. Alloy 316 Pipes is resistant to hydrogen embrittlement, making it the standard wetted material used in pressure transducers. Most common cold working operations such as shearing and stamping can be performed on Grade 316L Pipes.



Equivalent Grades for 316/316L Stainless Steel Pipe

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316 – 316L S31600/S31603 304S11 58E 1.4401 / 1.4436 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 2347 / 2348 SUS 316 – 316L



316/316L SS Welded Pipes Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316 – 316L min. – – – – – 16.0 2.0 10.0 –
max. 0.08 2.0 0.75 0.045 0.03 18.0 3.0 14.0 0.10



Stainless Steel 316/316L Seamless Pipe Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316 – 316L 515 205 40 95 217



Stainless Steel 316/316L Pipes Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
316 – 316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740
