Our Stainless Steel 316L Forged Socket Weld Fittings can be hardened by cold working, which can also result in increased strength. These Stainless Steel 316L Forged Threaded Fittings is often used in potable water and wastewater treatment. Our Stainless Steel 316L Forged Threaded Elbow is the lower carbon version of Stainless Steel 316 Forged Fittings and is immune from sensitization. These SS 316L Forged Socket Weld Elbow are suitable for use in non-welded parts and equipment. Our Stainless Steel 316L Forged Threaded Tee can be formed from the annealed temper by stamping and deep drawing. A post weld heat treatment in these SS 316L Forged Socket Weld Tee is not necessary. Our SS 316L Forged Threaded Cross has higher resistance to pitting and crevice corrosion in chloride environments. These Stainless Steel 316L Forged Socket Weld Cross are known for their excellent welding properties joined by both fusion and resistance processes. Our Stainless Steel 316L Forged Threaded Reducer has very high immunity from sensitization (grain boundary carbide precipitation).

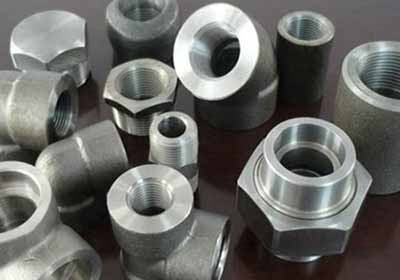

LIST OF STAINLESS STEEL 316L FORGED FITTINGS
-
- SS 316L FORGED SOCKETWELD FITTINGS
-
- 316L STEEL FORGED THREADED FITTING
These Stainless Steel 316L Forged Socket Weld Reducer is Chromium - Nickel stainless steel with added molybdenum to increase corrosion resistance and mechanical properties. Our 316L Stainless Steel Forged Fitting has much higher resistance to chlorides at elevated temperatures, with good formability. These 316L SS Forged Threaded Fittings has excellent corrosion resistance at normal temperatures in ordinary atmospheric conditions withstanding some natural acids.
Equivalent Grades for 316L SS Threaded Forged Fittings
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 – 316L | S31600/S31603 | 304S11 | 58E | 1.4401 / 1.4436 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | 2347 / 2348 | SUS 316 – 316L |
316L SS Socketweld Forged Fitting Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 – 316L | min. | – | – | – | – | – | 16.0 | 2.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 | |
SS 316L Forged Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 – 316L | 515 | 205 | 40 | 95 | 217 |
