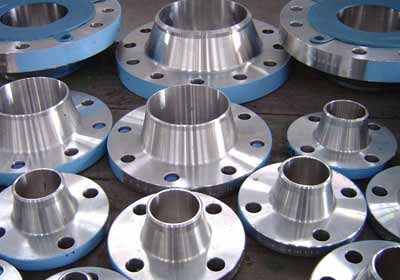

STAINLESS STEEL 316TI FLANGES

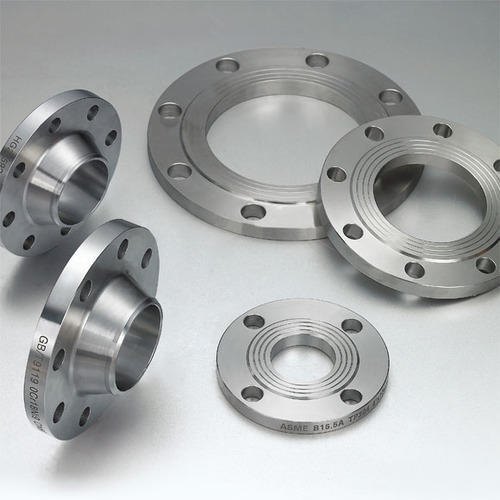

STAINLESS STEEL 316TI FLANGES - Image 2

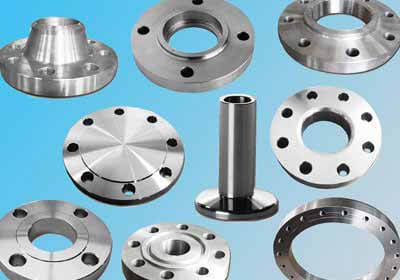

STAINLESS STEEL 316TI FLANGES - Image 3
STAINLESS STEEL 316TI FLANGES - Image 4

STAINLESS STEEL 316TI FLANGES

SPECIFICATIONS

SS Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Categories: ,
Contact Us
Request a Quote

Corrosion Resistance of Stainless Steel 316Ti Spectacle Blind Flanges is excellent in a range of atmospheric environments and many corrosive media. We supply Stainless Steel 316Ti Orifice Flanges to a variety of customers including fabricators of pressure vessels, industrial boilers and heat exchangers. The higher titanium content of Stainless Steel 316Ti Ring Joint Type Flanges also delivers higher tensile and yield strength than 316 / 316L and its austenitic structure provides excellent toughness down to cryogenic temperatures. SS 316Ti Lap Joint Flanges are also used in Control lines, High Performance Liquid Chromatography (HPLC), Process engineering, Condensers, Umbilicals, etc. Stainless Steel 316Ti Threaded Flanges is often used in rubber, plastics, paper machinery, pulp machinery, pollution control machinery, boat fittings, pump trim, etc. Compared to chromium-nickel austenitic stainless steels, SS 316Ti Socket Weld Flanges offers higher creep, stress to rupture and tensile strength at elevated temperatures.



LIST OF STAINLESS STEEL 316TI FLANGES

Stainless Steel 316Ti Weld Neck Flanges has excellent corrosion resistance and strength properties, and they are well suited for fabricated or formed applications. SS 316Ti Blind Raised Flanges is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Stainless Steel 316Ti Slip On Raised Flanges is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than other grades of steel without molybdenum. We are a known exporter of SS 316Ti Flanges, which has good weldability.



Equivalent Grades for 316Ti Stainless Steel Flanges

Grade UNS No Old British Euronorm GOST Japanese JIS
BS En No AFNOR
316Ti S31635 320S31 X6CrNiMoTi17-12-2 1.4571 Z6CNDT17‐12 08Ch17N13M2T SUS 316Ti



316Ti SS Flange Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316Ti min. – – – – – 16.0 2.00 10.0 –
max. 0.08 2.0 0.75 0.045 0.030 18.0 3.00 14.0 –



Stainless Steel 316Ti Flanges Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316Ti 515 205 35 75 205
