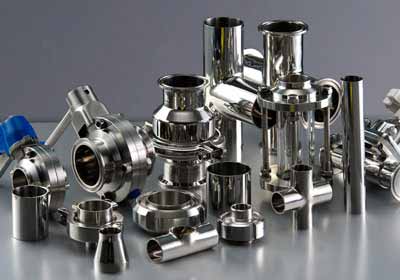

STAINLESS STEEL 317/317L PIPE FITTING
STAINLESS STEEL 317/317L PIPE FITTING - Image 2
STAINLESS STEEL 317/317L PIPE FITTING - Image 3
STAINLESS STEEL 317/317L PIPE FITTING - Image 4

STAINLESS STEEL 317/317L PIPE FITTING

SPECIFICATIONS

SS 317/317L Pipe Fitting are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A403 / ASME SA403
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Thickness : 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75



Categories: ,
Contact Us
Request a Quote

The high levels of these elements assure these Stainless Steel 317L Reducer has superior chloride pitting and general corrosion resistance to the conventional SS 304 / SS 304L and SS 316 / SS 316L. At temperatures less than 100 Degree F (38 Degree C), our SS 317 Cross has excellent resistance to solutions of higher concentration. These Stainless Steel 317L Tee is often used in Condensers in fossil and nuclear fueled power generation stations, Food processing equipment, Textile equipment and so on. Annealing of our Stainless Steel 317 Elbow should be carried out at 1850 Degree F - 2050 Degree F (1010 Degree C - 1121 Degree C), which is in addition followed by rapid cooling. Industries that use these SS 317L Butt Weld Fittings include: Food processing, Chemical, Petrochemical, Power generation, Pharmaceutical, Pulp and Paper, etc.



LIST OF STAINLESS STEEL 317/317L PIPE FITTING

Our Stainless Steel 317 Butt Weld Fittings does not respond to heat treatment, where cold work will cause an increase in both hardness and strength. Post - work annealing can be done to retain the corrosion resistance property, where these SS 317L Pipe Fittings is as well performed in order to reduce internal stress. Because of its benefits and chemical composition, our Stainless Steel 317 Pipe Fittings is used extensively in a variety of industries for a lot of applications. We are a known distributor of SS 317 / 317L Pipe Fittings, which is non hardenable by heat treatment.



Equivalent Grades for 317/317L Stainless Steel Buttweld Fitting

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
317 S31700 – – 1.4449 – – –



317/317L SS Seamless Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
317 min. – – – – – 18.0 – 11.0 –
max. 0.8 2.0 1.00 0.040 0.03 20.0 14.0 –



SS 317/317L Welded Buttweld Fitting Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
317 515 205 35 95 217
